Launch Technologies TLT440 Four post lift - Atteridgeville
Wednesday, 11 December 2019
Item details
City:
Atteridgeville, Gauteng
Offer type:
Demand
Price:
R 61,200
Item description
Description

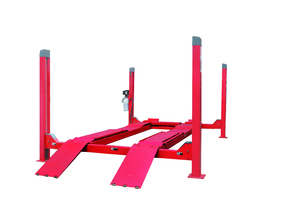

4 Post Vehicle Lift Electro Hydraulic operation.
4 Ton Capacity
Lifting height: 1 900mm
Platform length: 4 555mm
Overall width: 3 440mm
Drive through width: 3m
Air safety lock: 10 bars
Required power supply: 380 v 3 phase or 220 volt single phase
Features
Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm.
Driven by hydraulic cylinder and steel cable synchronization
makes stable lifting and lowering.
Full-range mechanical safety protection by using the safety
latches, manual lowering operation.
Full-range mechanical safety lock system.
Cylinder travel limit device effectively protects cylinder and
extends its lifespan.
Cable rupture safety system , effectively protects vehicle from
overturn.
Electric controlled lifting and lowering , safe and easy
operation.
Mechanical safety device for rope rupture .
Four connected steel cables force synchronized movement of
the lift, effectively prevent vehicles from sloping.
Distance between two platforms is adjustable for vehicles
with different wheel track .
Specifications
Rated load： 4000kg
Lifting height：1900mm
Initial height：170mm
Lifting time：≤60s
Lowering time：≥20s≤40s
Max. drive-on width：3045mm
Platform length：4240mm
Platform width：500mm
Overall width:3445mm
Overall height：2172mm
Motor power ：2. 2kw
Motor voltage：3 phase/380v or Single phase/220V
Working noise：≤75dB（A）
Working oil pressure：16MPa
Working air pressure： 0.5-0.7MPa
